Weave Smarter, Weave Faster – The Ultimate Computer-Dobby Loom
The Leclerc Weavebird is a high-performance computer-dobby floor loom designed for ambitious weavers who demand efficiency, precision, and ease. Whether you're weaving intricate textiles or high-tension projects like rugs, this loom offers effortless operation, exceptional shed quality, and unlimited pattern possibilities—all with minimal physical strain.
No More Tie-Ups – Just Weave
- Computer-Controlled Weaving – No tie-ups required. The loom automatically selects shafts based on your draft, saving time and eliminating errors.
- Unlimited Pattern Possibilities – Weave complex multi-shaft designs with ease—equivalent to having up to 575 treadles at your disposal.
- Compatible with Leading Weaving Software – Works with Fiberworks PCW, WeaveMaker, SwiftWeave, ProWeave, and other .WIF file-compatible programs.
Weave Longer, Weave Comfortably

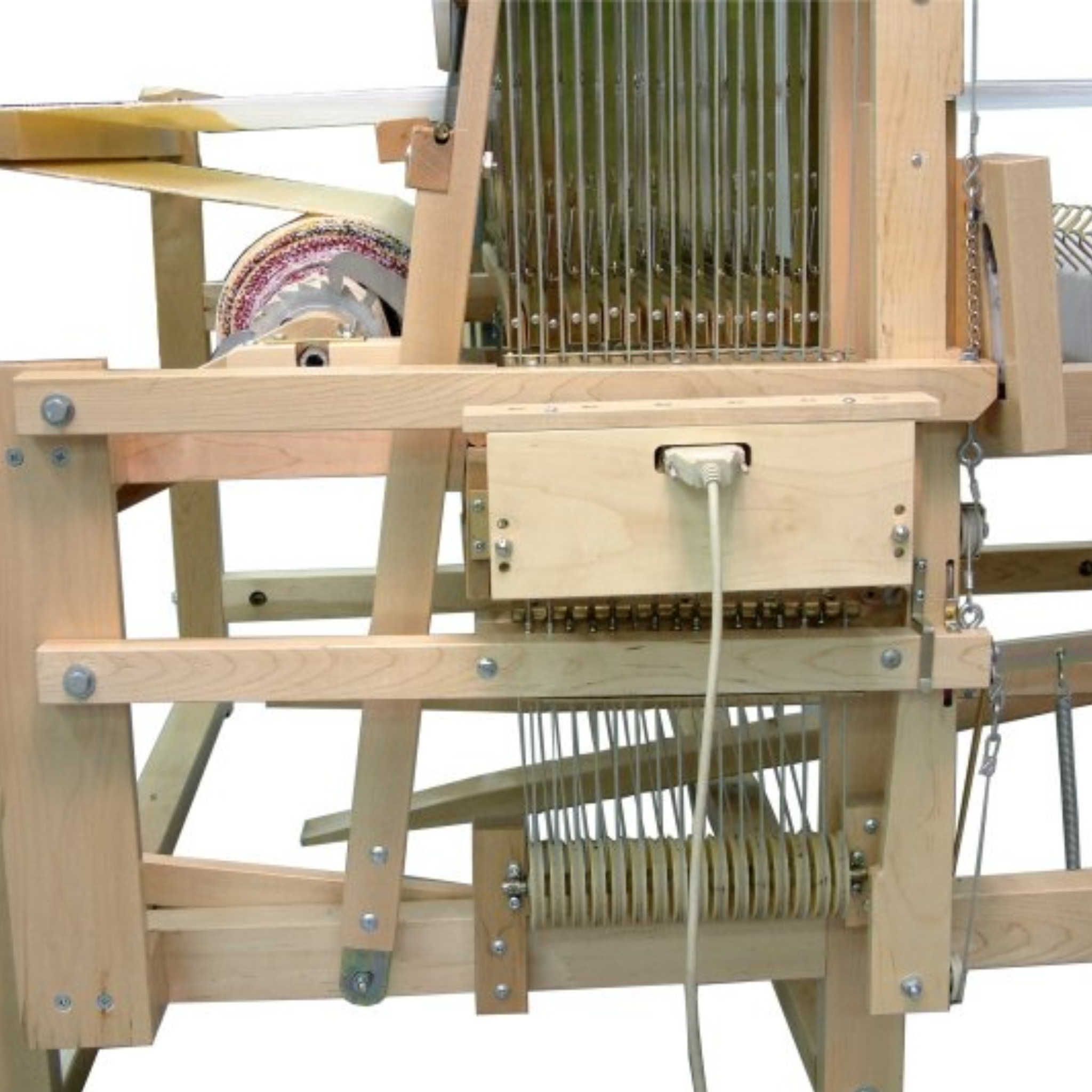

- Countermarch-Style Mechanism – Reduces treadling effort, making weaving as light as a 4-shaft counterbalance loom.
- Two-Treadle System – Right treadle opens the shed, left treadle closes it—no need for complex footwork.
- Ergonomic Design – Even shaft movement and balanced weight distribution allow for extended weaving sessions with less fatigue.
Perfect Shed, Every Time
- Even Warp Tension – The countermarch system ensures uniform tension, preventing stretching or distortion.
- Extra-Large Shed – Ideal for weaving with a variety of yarns, from fine silks to heavy rug wools.
- High-Tension Capability – Sturdy enough for rug weaving with an optional weighted beater.
Built to Last – Precision Craftsmanship
- Solid Hard Maple & Birch Construction – Ensures durability and stability for years of use.
- High-Quality Metal Components – Aluminum, steel, and cast iron parts for smooth operation and longevity.
- Adjustable & Removable Beams – Easily warp front-to-back or back-to-front.
Customizable to Fit Your Weaving Needs
- Available Weaving Widths – Choose from 27”, 36”, 45”, 60”, or 72” to suit your project scale.
- Multiple Shaft Options – 16, 24, or 32 shafts for maximum design flexibility.
- Optional Accessories – Double warp beam, sectional warp beam, overhead beater, and flying shuttle beater available.
Everything You Need to Start Weaving
- Computer Interface & Weavelec Software – Ready for immediate use with .WIF pattern compatibility.
- Stainless Steel Reed – Choose from 6, 8, 10, or 12 dents per inch.
- Inserted Eye or Texsolv Heddles – Pre-installed and ready for threading.
- End Feed Shuttle & Pirns – Optimized for smooth, consistent weaving.
- Warping Accessories – Includes lease sticks, warp rods, beam sticks, and aprons.
- Instructional Book & Assembly Video – Step-by-step guidance for setup and weaving success.
Weavebird Dimensions & Specifications
| Model | Weaving Width | Shafts | Number of Heddles | Height | Breastbeam Height | Width | Depth | Weight |
|---|
| Weavebird V2 27” | 27” | 16 | 1000 | 68” | 34.5” | 44” | 61” | 200 lbs |
| Weavebird V2 36” | 36” | 16 | 1500 | 68” | 34.5” | 50.5” | 61” | 240 lbs |
| Weavebird V2 36” | 36” | 24 | 2000 | 68” | 34.5” | 50.5” | 66” | 280 lbs |
| Weavebird V2 36” | 36” | 32 | 2500 | 68” | 34.5” | 50.5” | 71” | 310 lbs |
| Weavebird V2 45” | 45” | 16 | 2000 | 68” | 34.5” | 59.5” | 61” | 280 lbs |
| Weavebird V2 45” | 45” | 24 | 2500 | 68” | 34.5” | 59.5” | 66” | 330 lbs |
| Weavebird V2 45” | 45” | 32 | 3000 | 68” | 34.5” | 59.5” | 71” | 360 lbs |
| Weavebird V2 60” | 60” | 16 | 2500 | 68” | 34.5” | 74.5” | 61” | 320 lbs |
| Weavebird V2 60” | 60” | 24 | 3000 | 68” | 34.5” | 74.5” | 66” | 385 lbs |
| Weavebird V2 60” | 60” | 32 | 3500 | 68” | 34.5” | 74.5” | 71” | 410 lbs |
| Weavebird V2 72” | 72” | 16 | 3000 | 68” | 34.5” | 80” | 61” | 450 lbs |
Helpful Documents
Invest in Efficiency, Precision & Comfort
The Leclerc Weavebird combines power, precision, and ease of use to deliver a weaving experience like no other. Whether you're a seasoned weaver looking for faster, more complex patterning or a professional weaver seeking efficiency, this computer-dobby loom is built to keep up with your creative ambitions.
