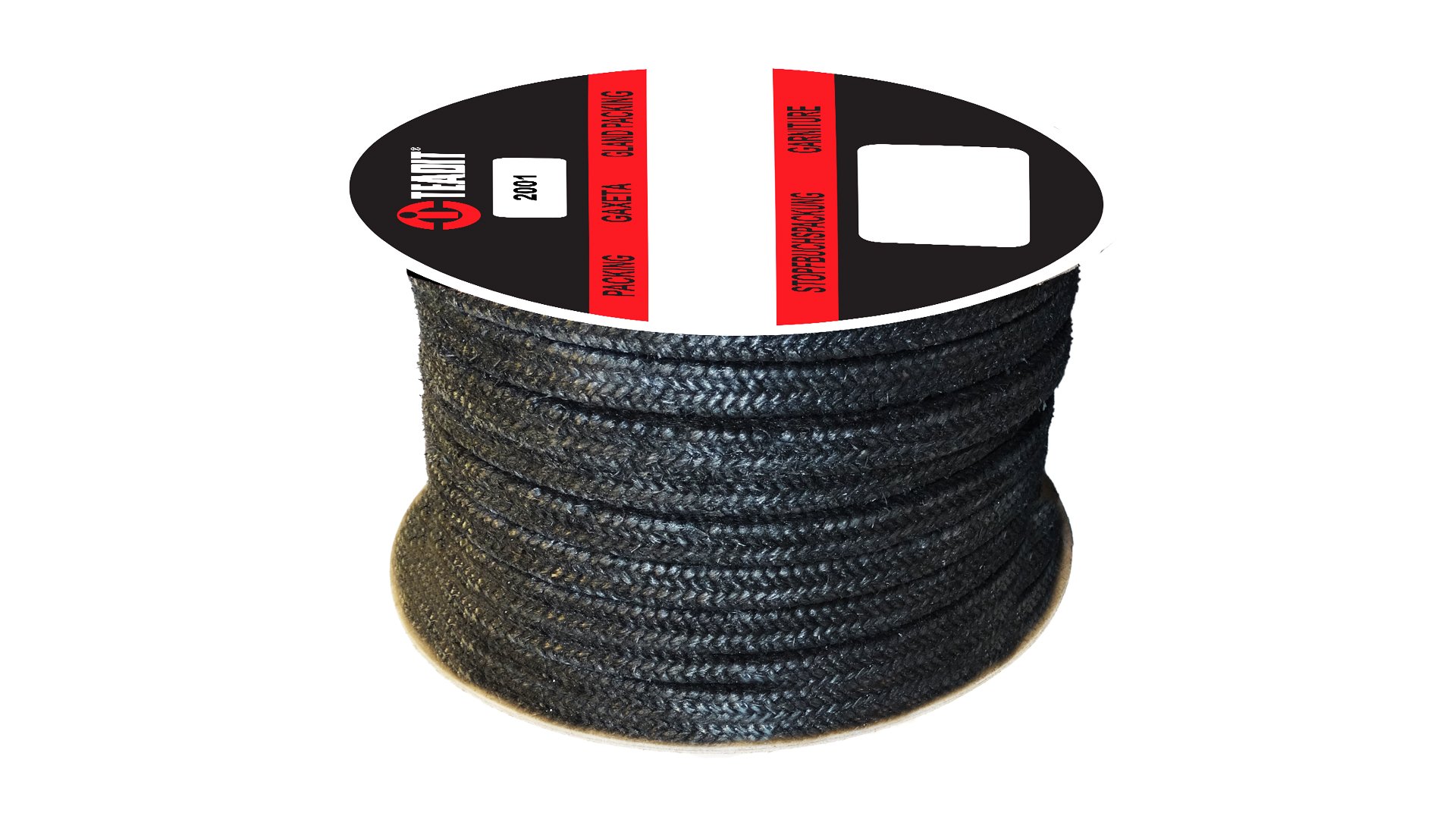

**Lamons Sterling Seal and Supply STCC 2001.437x5 - 2001 Teadit Style Graphite Yarn, Graphite Filled, 7/16" CS x 5 lb. Spool - High-Temperature Sealing Solution for Industrial Pumps and Valves**

SSS Style 2001 is a rugged premium grade, low friction, high strength, proprietary graphite fiber, twisted together and interlock braided This Style contains a special lubricant to provide a bearing film, and protect shafts from Scoring It also acts as a blocking agent to prevent wicking Style 2001 Packing is ideally suited for use in severe service valves and rotary shaft applications It handles strong acids and alkali solutions except fuming nitric acid, Oleum and fluorine It can be used to seal steam, water, oil, solvents, alkalis, and acids It is often used as end Rings for Packing sets utilizing softer packing that might tend to extrude This Style also handles high temperatures, extremely high shaft speeds (see service limits below), most strong chemicals, and reduces shaft wear (3/8” Packing cross Section x 1 pound spool)

SSS style 2001 is a rugged premium grade, low friction, high strength, proprietary graphite fiber, twisted together and interlock braided

SSS 2001 packing acts as a blocking agent to prevent wicking and is ideally suited for Use in severe service valves and rotary shaft applications

SSS 2001 graphite yarn, graphite filled packing contains a special lubricant to provide a bearing film and protect shafts from Scoring

0-14 pH range (except strong oxidizers); shaft speed 3937 FPM (20M/s), temperature (minimum -400 F, maximum steam 1202 F) (atmosphere 842 F) / pressure static to 300 bar (4350 psi)

12.5 ft. Per pound. Approximate yields +/- 10 percent, reciprocating to 100 bar (1450 psi)
